What Are the Main Types of Ball Valves for Industrial Applications?

Industrial ball valves fall into five primary categories: floating ball valves, trunnion mounted ball valves, multiport ball valves (3-way, 4-way), V-port ball valves, and segmented ball valves. The right choice depends on operating pressure, flow control needs (on/off vs. throttling), pipe size, and medium characteristics.

I’ve seen too many “wrong valve” replacements in the field. For engineers, system designers, and project managers, we will explain each type in plain language, compare their features, and provide a practical selection framework in this article.

How Does a Ball Valve Work?

A ball valve uses a spherical ball with a bore (hole) through its center. Rotating the ball 90 degrees opens or closes the flow:

• Open position: The bore aligns with the pipe axis, allowing fluid to pass through.
• Closed position: The solid part of the ball faces the flow, blocking it completely.

Sealing is achieved by pressing the ball against soft or metal seats. In floating designs, fluid pressure pushes the ball into the downstream seat. In trunnion designs, fixed supports absorb the pressure, and springs push seats onto the ball (that one mechanical difference changes everything about where you can use the valve).

Ball valves offer quick quarter-turn operation, reliable shut-off, and low pressure drop when fully open.

Ball Valve Primary Classification: By Body Design and Ball Support

Floating Ball Valve

In a floating ball valve, the ball is not fixed in place. The ball “floats” between two seats. When fluid pressure enters the valve, it forces the ball against the downstream seat, creating a tight seal.

Characteristics:

• Suitable for low to medium pressures (typically up to ANSI Class 600)
• Available in sizes from ½” to 12″ (smaller sizes preferred)
• Lower torque than trunnion designs
• Simple construction, lower cost

You can place it for:

• Water treatment
• Low-pressure oil & gas (up to 600 psi)
• HVAC skids
• General industrial on/off service

Trunnion Mounted Ball Valve

A trunnion ball valve has mechanical anchors (trunnions) at the top and bottom of the ball. These trunnions absorb line pressure, so the ball does not push against the seats. Instead, spring-loaded seats push onto the ball.

Characteristics:

• High-pressure capability (Class 600 to Class 2500 and higher)
• Available in large diameters (up to 48″ or more)
• Lower operating torque (seats do not rub the ball under pressure)
• May include double block & bleed capability

It’s widely used in:

• Long‑distance pipelines
• Refinery catalyst lines
• High‑pressure hydraulic systems
• Offshore platforms

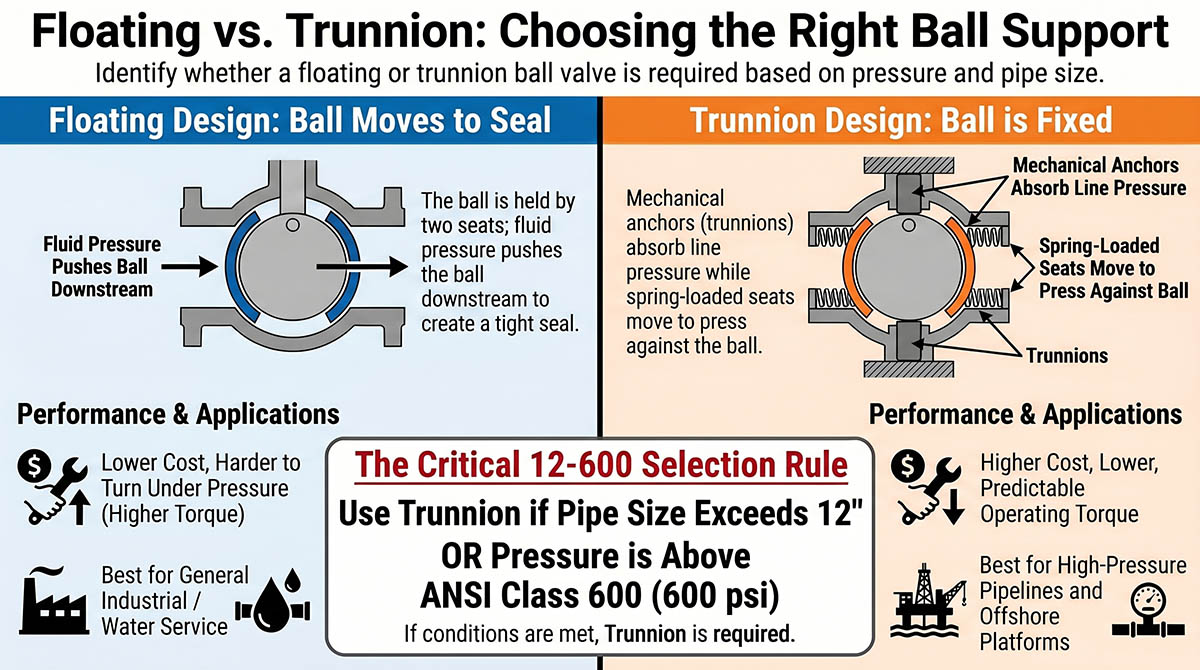

Comparison Table – Floating vs. Trunnion Ball Valves

Feature	Floating Ball Valve	Trunnion Ball Valve
Pressure rating	Low to medium (up to Class 600)	High to very high (Class 600–2500+)
Size range	½" – 12"	2" – 48" or more
Ball support	No fixed support; pressure pushes ball into seat	Top and bottom trunnions fix ball position
Seat design	Seat is stationary; ball moves	Seat is spring-loaded; ball fixed
Operating torque	Higher at high pressure	Lower, more predictable
Cost	Lower	Higher
Best for	General purpose, moderate conditions	High pressure, large diameter, critical service

One number to remember: If your line size >12″ or pressure >600 psi, stop thinking about floating. Go trunnion.

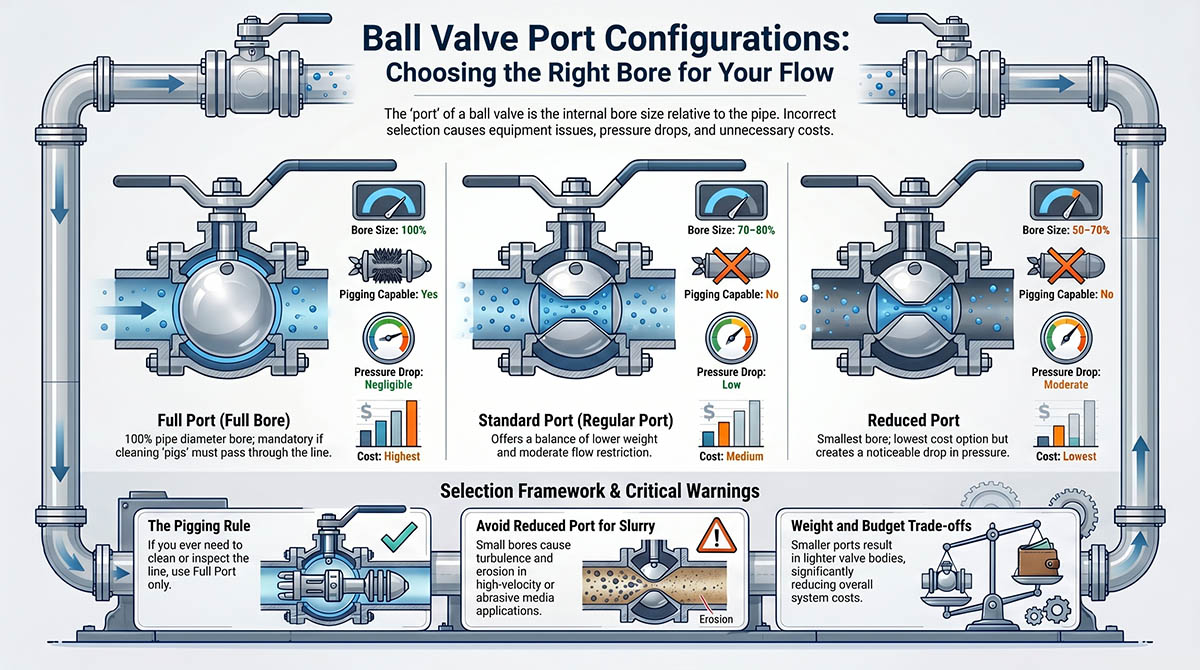

Ball Valves Classified by Port Configuration

Port configuration refers to the size of the ball bore relative to the pipe inner diameter.

Full Port (Full Bore)

The ball’s bore is the same size as the pipe’s inner diameter. No flow restriction. No drop in pressure and the ability to pig (clean the pipeline); but it’s more expensive with a bigger valve body and weighs more. When to use: Pigging is needed and a small drop in pressure is important.

A client ordered reduced port ball valves for a crude oil line that needed monthly pigging. Result: the pig got stuck, and they had to cut the pipe. Full port was the only answer.

So ask yourself: Will you ever send a cleaning or inspection pig through that line? If yes, full port is mandatory. Period.

Standard Port (Regular Port)

The ball bore is approximately 70–80% of the pipe diameter.

It has a smaller body, it’s cheaper & lighter. But it features some pressure drop, and it doesn’t allow pigging. So use it when pigging isn’t needed and cost and weight are important.

Reduced Port

The ball bearing is much smaller than the pipe diameter, usually by one pipe size. Among the three type port, this one has the smallest body size and lowest price. But it does has a noticeable drop in pressure, which could cause turbulence or erosion in slurry service. So we advise you to use it when the flow rate is low and the application is not critical.

Port Type	Bore Size vs. Pipe ID	Pressure Drop	Pigging Capable	Cost
Full port	100%	Negligible	Yes	Highest
Standard port	70–80%	Low	No	Medium
Reduced port	50–70%	Moderate	No	Lowest

Specialized Ball Valves for Flow Control and Multi-Directional Alternations

Standard ball valves are terrible for throttling. The flow characteristic is too steep – you open a little, nothing happens; then you open a bit more, and flow jumps to 80%. That’s called “quick opening” characteristic, and it’s useless for regulation.

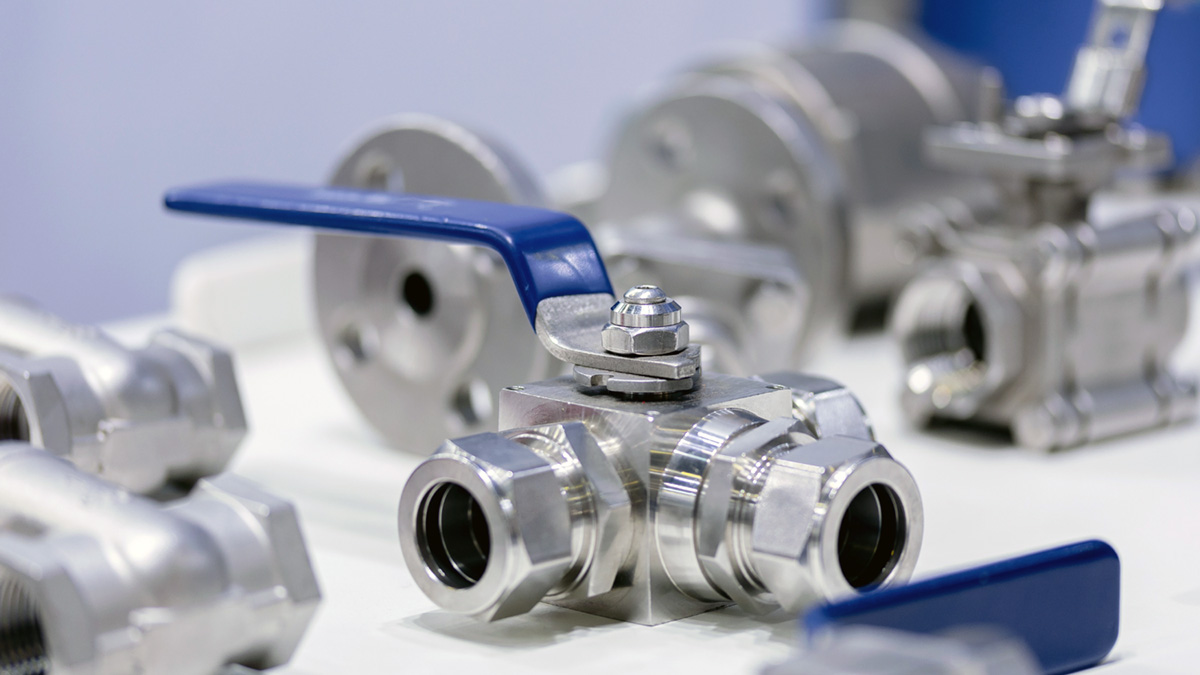

Multiport Ball Valves (3-Way, 4-Way)

Multiport valves have three or four ports, allowing flow diversion, mixing, or direction changes.

Common configurations:

• L-port: Connects adjacent ports. Rotate 90°, and you switch flow from one outlet to another.
• T-port: Connects any combination of two or three ports – used for mixing or full shut-off.

Applications: Tank switching, sampling systems, bypass lines, heating/cooling circuits.

Advantages: Replaces multiple valves, reduces fittings and leak points.

V-Port Ball Valve

The ball has a V-shaped notch (or multiple V-notches) machined into its surface. As the valve opens, the V-notch creates a controlled flow area.

Characteristics:

• Provides nearly equal percentage flow characteristic – small opening changes have proportional flow effect.
• Good for throttling and flow regulation.
• Higher rangeability than most other control valves.

Applications:

• Steam control
• Slurry flow regulation
• Paper stock flow
• Chemical dosing
• Tank level control loops

Not suitable for: Abrasive media at high velocity (V-notch erodes) or tight shut‑off (the notch will always pass a tiny flow).

Segmented Ball Valve

A segmental ball valve uses a partial ball (often 60–90 degrees of a sphere) instead of a full sphere. Like a V-port, it is designed for control.

Characteristics:

• Lighter and smaller than full-ball control valves.
• Less tendency to pack with solids.
• Often used in pulp and paper, wastewater treatment.

Key Features of Different Ball Valve Type Quick Comparison

Type	Size Range	Pressure Class	Primary Use	Key Advantage	Key Limitation
Floating	½" – 12"	Up to Class 600	On/off for general service	Simple, low cost	Not for high pressure or large size
Trunnion	2" – 48"+	Class 600–2500+	High pressure, large pipelines	Handles high pressure, low torque	Expensive, heavy
Multiport (3/4-way)	½" – 12"	Up to Class 600	Flow diversion, mixing	Replaces multiple valves	Limited size range
V-port	1" – 20"	Up to Class 600	Throttling, flow control	Smooth, equal percentage characteristic	V-notch erodes
Segmented	2" – 24"	Up to Class 600	Throttling for slurries	Resists packing, lighter	Less precise than V-port

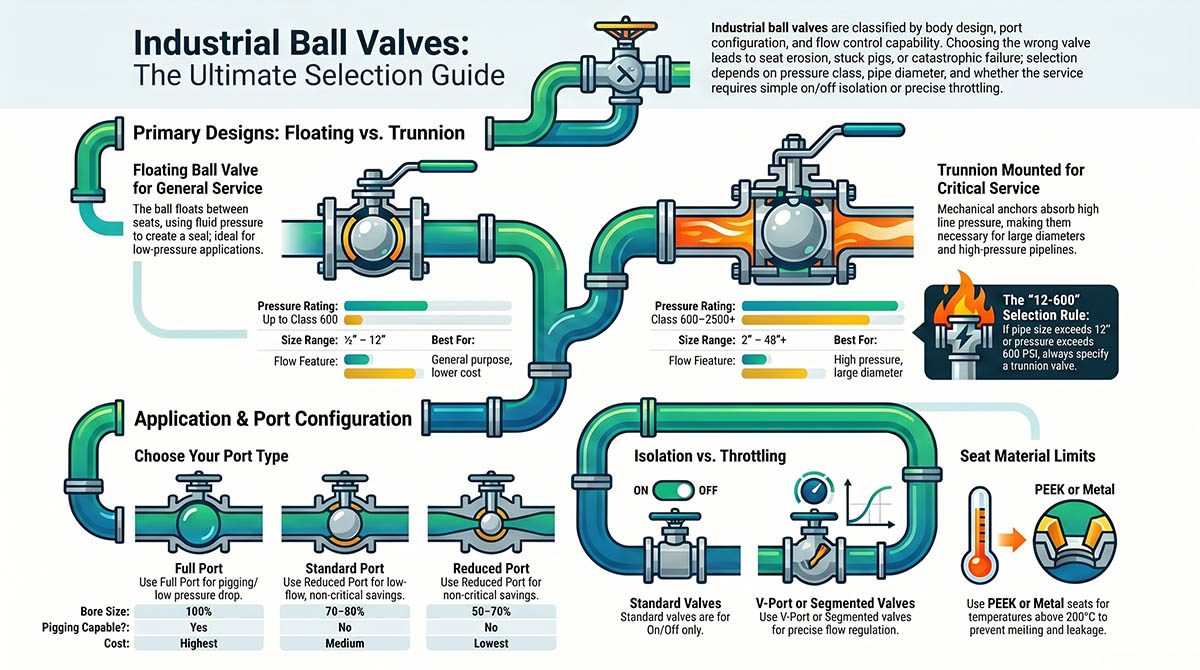

How to Choose the Right Type of Ball Valve – A Practical Checklist

Use this numbered checklist for selecting ball valves:

1. Determine the function – On/off isolation or throttling/control?
   • On/off → Floating or trunnion
   • Throttling → V-port or segmented
2. Check pressure rating – Operating pressure and potential surges.
   • Low/medium → Floating ball valve
   • High → Trunnion mounted
3. Measure pipe size – Diameter and connection type (flanged, threaded, welded).
   • Small (≤12″) → Floating possible
   • Large (>12″) → Trunnion required
4. Need pigging? – Yes → Full port only.
5. Need multiple flow paths? – Yes → multiport 3‑way or 4‑way..
6. Consider maintenance – Floating valves are easier to repair in smaller sizes; trunnion valves often have replaceable seat cartridges.
7. Evaluate medium – Corrosive? Abrasive? High temperature? Clean → PTFE seats / Abrasive or high temp → metal seats / Fibrous → segmented ball valve.
8. Fire‑safe required? – Yes → demand API 607 or ISO 10497 certification.
9. Check budget

Common Body and Ball Materials for Industrial Applications

Valve body and ball material decisions will outlive your project. Get them wrong, and corrosion or temperature will kill the valve in weeks.

Body materials (select based on fluid compatibility and temperature):

Carbon steel (WCB)	Low (needs coating)	-29°C to 425°C	Oil, gas, steam
Stainless steel (CF8/304)	Good	-196°C to 400°C	Corrosive fluids, food, chemical
Stainless steel (CF8M/316)	Very good	-196°C to 400°C	Marine, acid service
Brass	Moderate	-20°C to 150°C	Water, air, low pressure
Alloy (Hastelloy, Monel)	Excellent	Cryogenic to high	Aggressive chemicals

Ball surface: Chrome-plated (standard), stainless steel, ceramic (abrasive service), Stellite (high temperature, wear).

Seat materials:

Seat	Max temp	Wear resistance	Best for
PTFE	200°C	Low	General service, clean media
RTFE (reinforced)	200°C	Medium	Higher pressure, some solids
PEEK	260°C	High	High temp, chemically aggressive
Metal (Stellite, Inconel)	650°C	Very high	High temperature, fire safe, abrasives

Industry-Specific Use Cases

Industry	Common Ball Valve Type	Reason
Oil & gas pipelines	Trunnion, full port	High pressure, need pigging, fire-safe
Chemical plants	Stainless steel floating, V-port	Corrosive media, precise control
Water/wastewater	Floating, full port (large diameter)	Low pressure, low cost, pigging for cleaning
Tunnel fire protection	Trunnion, metal-seated	High reliability, fire-safe design
HVAC	Brass floating, standard port	Low cost, moderate pressure, frequent operation
Pharmaceutical	Stainless steel sanitary floating	Cleanability, no dead legs
Pulp & paper	Segmented, V-port	Handles fibrous slurries, resists clogging

Common Mistakes When Selecting Ball Valves

Mistake 1: Choosing reduced port when pigging is required

Pig gets stuck. Emergency shutdown. Call a welder. Remember to always specify full port if pigging is even a future possibility.

Mistake 2: Throttling with a standard ball valve

Result: Seat erosion, poor control, premature failure.

Solution: Use V-port or segmented ball valve for throttling.

Mistake 3: Ignoring seat material temperature limits

“But PTFE is cheap!” Then it melts at 250°C, leading to leakage. Thus we recommend to select metal or PEEK seats for high temperature.

Mistake 4: Wrong installation orientation

Some trunnion valves have a preferred side – read the manual.

Mistake 5: Overlooking fire-safe requirements

For hydrocarbon service, fire‑safe certification (API 607) is not optional. Standard valves may not meet this.

Mistake 6: Specifying floating valve for very high pressure or large diameter

Result: Excessive torque, potential seat damage. Use trunnion instead.

FAQ

Conclusion

Selecting the correct type of ball valve requires understanding your application’s pressure, size, control needs, and medium. Floating ball valves suit general low-pressure duties; trunnion valves handle high-pressure pipelines; multiport valves simplify flow switching; V-port and segmented valves enable precise throttling.
